QUADRO-G | Lightweight Fusion Goggles | GSCI Advanced Photonics

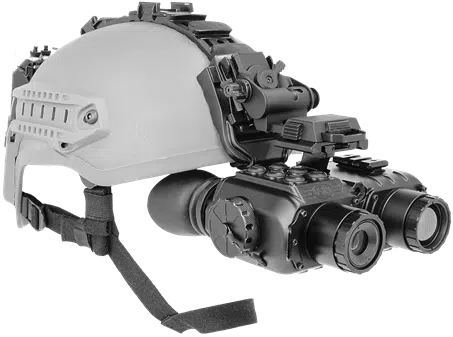

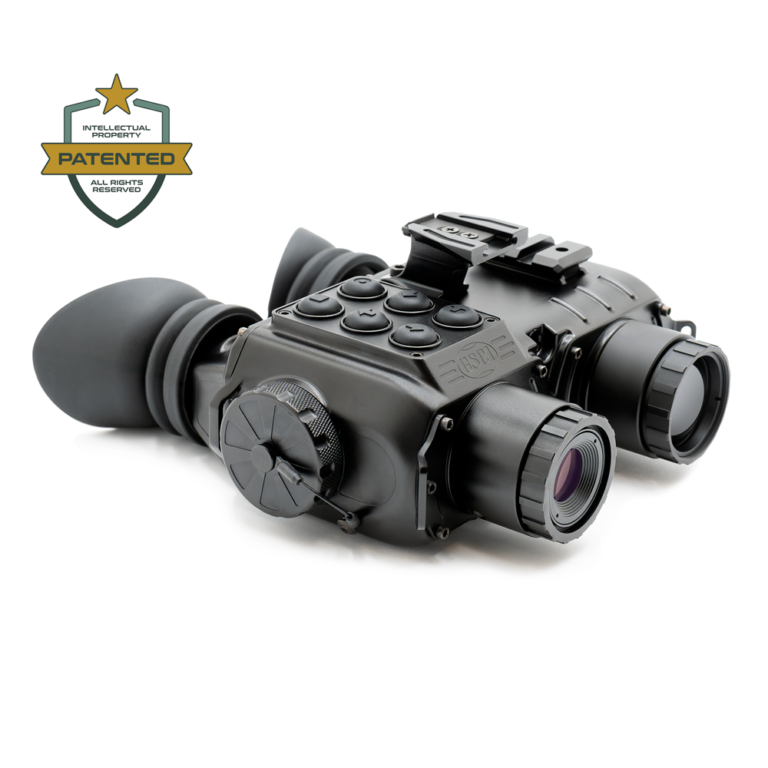

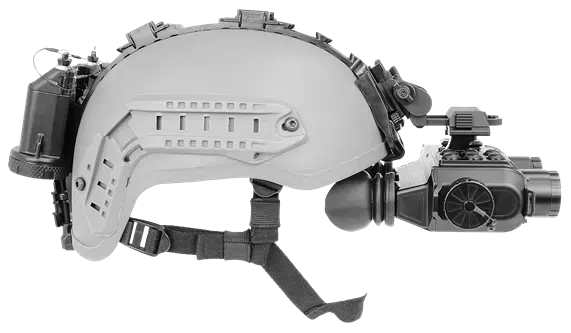

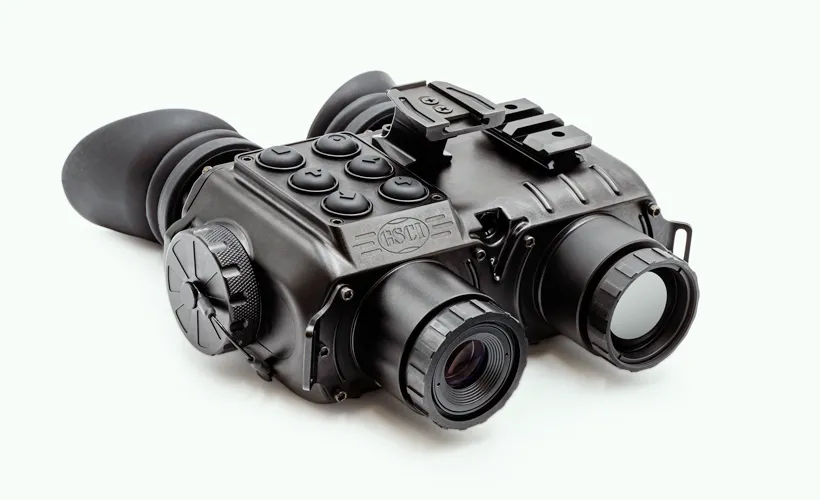

The QUADRO-G is the dual-eye tactical goggle system for surveillance and reconnaissance at short- and medium-range distances based on the QUADRO-S unit. Dual-Eyepiece design and top bracket make the unit suitable for wide variety of scenarios requiring hands-free operation.

Thanks to GSCI’s patented multi-sensor technology, the QUADRO-G operates in 5 distinct modes: Thermal, Daytime, Nighttime and two Hybrid views, also known as the Fusion: Day-Fusion and Night-Fusion. On top of that, the QUADRO-G comes loaded with many unique features that offer convenience and help give the operator a tactical advantage.

Most Popular Options & Accessories

  • MTAR™-HUD – Multi-Task Heads-Up Display
  • MVP-240 – Multi-Voltage Battery Pack
  • HMD-800-MOD – Portable Display Unit
  • TRC120 – Remote Control
  • QRF-4500 – Advanced Laser Rangefinder
  • DVR-INT – Internal Video Recorder (Ideal for Post-Mission Debriefings | Drag-and-Drop Video Files | 32GB microSD Card Included)

Looking to purchase the QUADRO-G? Find a dealer near you

QUADRO-G Specifications

  • FPA Refresh Rate: 9Hz or 50Hz
  • Digital Zoom: 2X, 4X, 8X
  • Display: Full Size: 0.5-Inch, AMOLED, Colour, 800×600
  • Imaging Modes: Monochrome + 8 Colour Palettes
  • Digital Video Recorder: Optional: Built-In or External
  • Power Source: 4pcs AA and External (e.g. MVP-240)
  • Battery Life: Up to 7 hours
  • Operating Temperature: -40°C .. +50°C
  • Manufacturer’s Warranty: 7 Years, Limited

QUADRO-G Features

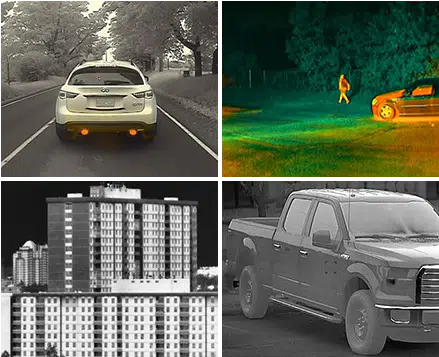

The beauty of the QUADRO-G is that with the fusion mode you are never left in pitch darkness.

Both channels, complementing each other to produce real-time, no-lag video image and unmatched situation awareness. This is achieved by combining detailed images from the visible/near infrared and long-wave infrared ranges of spectrum. The end result is a superb detection and recognition capability.

Overview

Highlights

Performance
