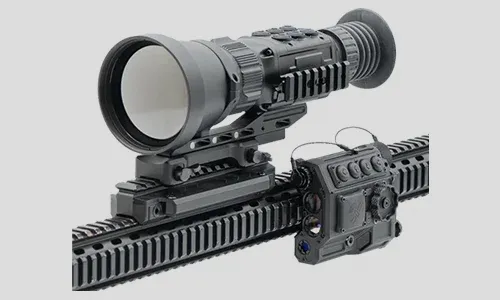

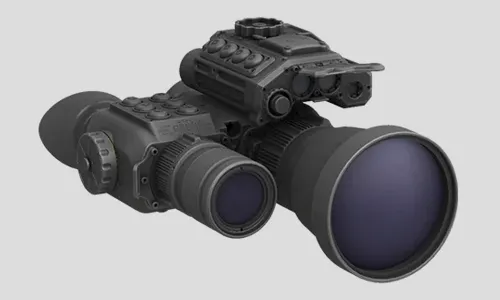

PRECISION TARGETING SYSTEMS
Tailored to meet the diverse operational needs of the US / NATO military, these advanced systems seamlessly integrate rugged design with cutting-edge day, night, thermal and fusion capabilities for reconnaissance, surveillance, and targeting missions. Incorporating the latest in advanced imaging technology, it features a combination of a high-performance LWIR camera and a day/night camera, ensuring optimal performance across various lighting and weather conditions.
Enhancing precision targeting, theses devices include an eye-safe laser rangefinder, digital magnetic compass, and global positioning system (GPS) and a vista of image-enhancing features, enabling accurate identification and tracking of targets.
Locating targets at distances exceeding 4 kilometers these systems offer unparalleled situational awareness and operational effectiveness. Standard enhancements include provisions for external power and video/data output, further expanding their capabilities and interoperability with external systems.
- Highly Rugged, yet lightweight aluminum structure MIL-STD-810G rated
- Patented Fusion Technology
- 100mm Germanium Lens, NATO Target Detection: 4500m
- 1550nm Laser Rangefinder. Target ranging to 4500m
- Operating time: Up to 20 hours *
- Magnification Unity with Day Scope
- Mounting: Tripod / Hand-Held
- Includes: Compass, Recording, GPS (Can be disabled)
*Extended operational time is achievable with GSCI distinctive patented battery pack, MIL-STD-810G rated. Provides the longest supplementary time for devices in the field.

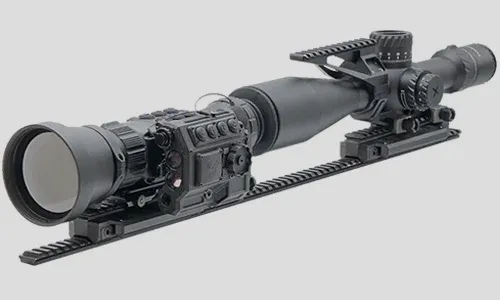

- Highly Rugged, yet lightweight aluminum structure MIL-STD-810G rated
- Patented Fusion Technology
- Recoil Mitigation Solution – allows to use system with heavy recoil
- 100mm Germanium Lens (75mm Lens Optional), NATO Target Detection: 4500m
- 1550nm Laser rangefinder. Target ranging to 4500m
- Operating time: Up to 20 hours *
- Mounting: MIL-STD-1913, <15 seconds to mount.
- Includes: Compass, Recording, GPS (Can be disabled)
*Extended operational time is achievable with GSCI distinctive patented battery pack, MIL-STD-810G rated. Provides the longest supplementary time for devices in the field.

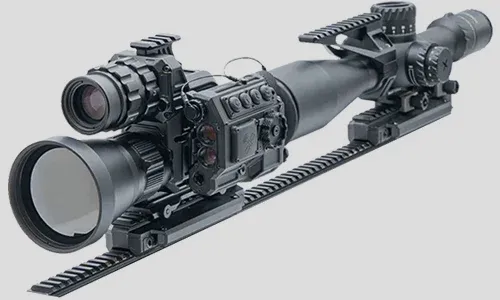

- Highly Rugged, yet lightweight aluminum structure MIL-STD-810G rated
- Patented Fusion Technology
- Recoil Mitigation Solution – allows to use system with heavy recoil
- 75mm Germanium Lens (100mm Lens Optional), NATO Target Detection: 4500m
- 1550nm Laser rangefinder. Target ranging to 4500m
- Operating time: Up to 20 hours *
- Magnification Unity with Day Scope
- Mounting: MIL-STD-1913, <15 seconds to mount.
- Includes: Compass, Recording, GPS (Can be disabled)
*Extended operational time is achievable with GSCI distinctive patented battery pack, MIL-STD-810G rated. Provides the longest supplementary time for devices in the field.
- Highly Rugged, yet lightweight aluminum structure MIL-STD-810G rated
- Recoil Mitigation Solution – allows to use system with heavy recoil
- 75mm Germanium Lens (100mm Lens Optional), NATO Target Detection: 4500m
- 1550nm Laser rangefinder. Target ranging to 4500m
- Operating time: Up to 38 hours *
- Magnification Unity with Day Scope
- Mounting: MIL-STD-1913, <15 seconds to mount.
- Includes: Compass, Recording, GPS (Can be disabled)
*Extended operational time is achievable with GSCI distinctive patented battery pack, MIL-STD-810G rated. Provides the longest supplementary time for devices in the field.
- Highly Rugged, yet lightweight aluminum structure MIL-STD-810G rated
- Recoil Mitigation Solution – allows to use system with heavy recoil
- 100mm Germanium Lens (75mm Lens Optional), NATO Target Detection: 4500m
- 1550nm Laser rangefinder. Target ranging to 4500m
- Operating time: Up to 38 hours *
- Mounting: MIL-STD-1913, <15 seconds to mount.
- Includes: Compass, Recording, GPS (Can be disabled)
*Extended operational time is achievable with GSCI distinctive patented battery pack, MIL-STD-810G rated. Provides the longest supplementary time for devices in the field.

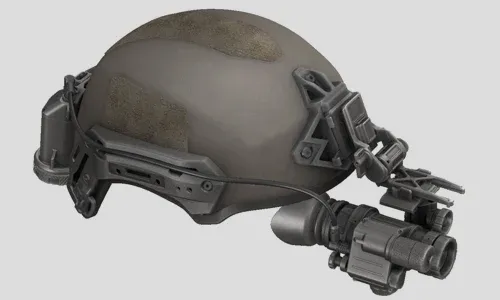

The Dismounted Soldier Helmet Support System is a comprehensive solution for optimal functionality in the field. It includes the HMH-1 Mount, GR8™ Helmet Mount, J-arm (for monocular systems), and Battery Pack MVP-240™, offering a range of features to enhance your operational experience.
KEY FEATURES:
- Made in Canada, Fully Exportable, Competitive Pricing
- Quick Setup
- Low Profile Advanced Helmet Mount
- Adjustable Dovetail J-Arm
- Universal Battery Pack
QUICK SETUP:
– Helmet rail facilitates easy attachment of accessories without modifying the helmet
– Setup is completed in under 60 seconds adding the standard helmet mount shroud and picatinny rail along the helmet centerline.

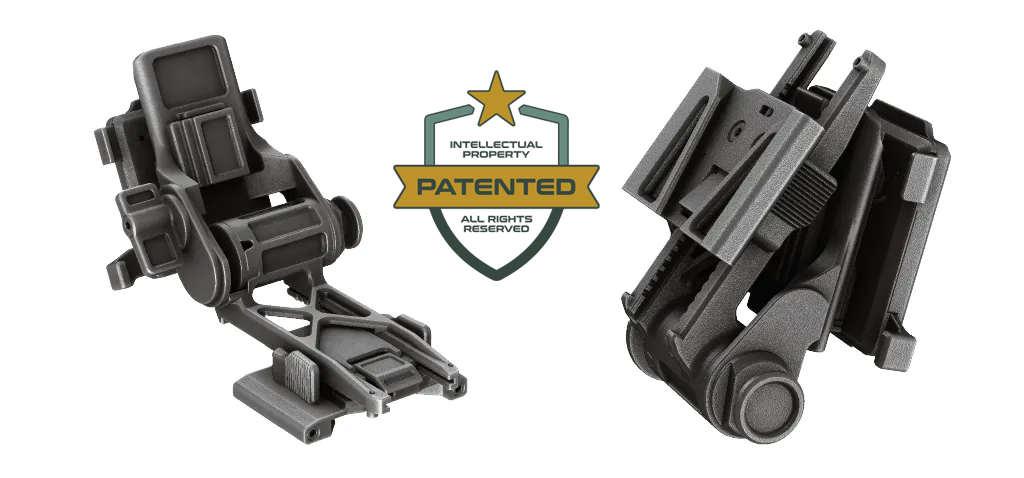

LOW PROFILE HELMET MOUNT GR8™:
– Multiple adjustments for tilt, fore/aft, height, flip-up and down, with a breakaway feature
– Universal socket ensures a perfect fit and enables the flip-up-off feature for binocular Night Vision systems from leading brands
– Magnet setup for auto-off on Night Vision when disconnected from the helmet mount.
– Perfect fitting with various helmet mounts
– Connects to Night Vision monocular systems from leading brands, enabling flip-up-off features when connected to a Helmet Mount with magnets
UNIVERSAL BATTERY PACK MVP-240™:
– Provides extended operating time (longest in the industry) for night vision and thermal devices
– Fully MIL-SPEC design for reliable operation in harsh conditions
– Can Power 3 Different Devices Simultaneously
– Easily and securely mounts on the helmet with a picatinny rail or Velcro®
– Supplied with open-ended cables for customization to any device on the market
– Cable splitter to power up any additional electro-optical devices (night vision, thermal imaging, rangefinder etc.
The Dismounted Soldier Helmet Night Vision Monocular Kit is a complete solution designed to optimize functionality in the field. This kit comprises the Night Vision Monocular OEM Kit, Helmet Mount, J-arm, and Battery Pack, providing a diverse set of features to elevate your operational capabilities.
KEY FEATURES:
- Made in Canada, Fully Exportable Plug-and-Play Kit. Competitive Pricing
- Quick Setup
- Low Profile Advanced Helmet Mount
- Adjustable Dovetail J-Arm
- Universal Battery Pack
LIGHT-WEIGHT SOLUTION FOR RAPID DEPLOYMENT:
– The lightest monocular housing on the market
– Aluminum body and MIL-SPEC design for durability and reliability
– Push button controls option for easy in-field operation, and advanced features
– Power port option for extended operating time
– Accepts all makes and models of 18mm tubes, with and without manual gain control
LOW PROFILE HELMET MOUNT GR8™:
– Multiple adjustments for tilt, fore/aft, height, flip-up and down, with a breakaway feature
– Universal socket ensures a perfect fit and enables the flip-up-off feature for binocular Night Vision systems from leading brands
– Magnet setup for auto-off on Night Vision when disconnected from the helmet mount
– Perfect fitting with various helmet mounts
– Connects to Night Vision monocular systems from leading brands, enabling flip-up-off features when connected to a Helmet Mount with magnets
UNIVERSAL BATTERY PACK MVP-240™:
– Provides extended operating time (longest in the industry) for night vision and thermal devices
– Fully MIL-SPEC design for reliable operation in harsh conditions
– Can Power 3 Different Devices Simultaneously
– Easily and securely mounts on the helmet with a picatinny rail or Velcro®
– Supplied with open-ended cables for customization to any device on the market
– Cable splitter to power up any additional electro-optical devices (night vision, thermal imaging, rangefinder etc.
The Dismounted Soldier Helmet Night Vision Binocular Kit is a versatile solution crafted for peak functionality in the field. This kit encompasses the Night Vision Binocular OEM Kit, Helmet Mount, and Battery Pack, delivering a spectrum of features to elevate and enrich your operational experience.
KEY FEATURES:
- Fully Exportable, Non-ITAR Controlled
- Quick Setup
- Low Profile Advanced Helmet Mount
- Adjustable Dovetail J-Arm
- Universal Battery Pack
DEPTH PERCEPTION AND REDUCED EYE FATIGUE:
– Independent focus, and independent channel operation
– Instant IR for quick operations such as map viewing or Morse code communication with team members
– Polarity indifferent power supply for in-field battery swaps in dark conditions
– High situational awareness thanks to dual channel view and depth perception
– Accepts external power sources for extended operating time
LOW PROFILE HELMET MOUNT GR8™:
– Multiple adjustments for tilt, fore/aft, height, flip-up and down, with a breakaway feature
– Universal socket ensures a perfect fit and enables the flip-up-off feature for binocular Night Vision systems from leading brands
– Magnet setup for auto-off on Night Vision when disconnected from the helmet mount
UNIVERSAL BATTERY PACK MVP-240™:
– Provides extended operating time (longest in the industry) for night vision and thermal devices
– Fully MIL-SPEC design for reliable operation in harsh conditions
– Can Power 3 Different Devices Simultaneously
– Easily and securely mounts on the helmet with a picatinny rail or Velcro®
– Supplied with open-ended cables for customization to any device on the market
– Acts as a counterweight to the night vision binoculars when helmet mounted, enabling the most convenient use while decreasing fatigue
– Cable splitter to power up any additional electro-optical devices (night vision, thermal imaging, rangefinder etc.
