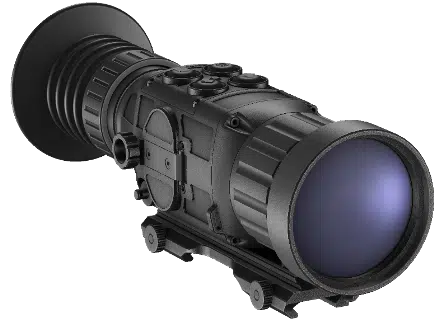

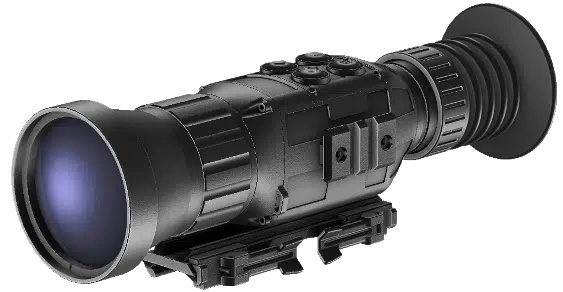

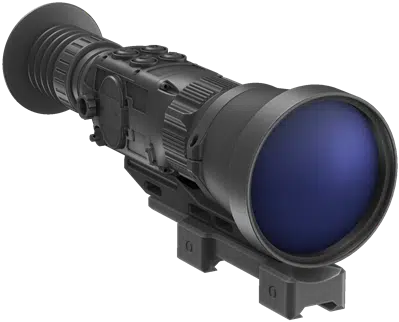

TI-GEAR-S
TI-GEAR-S
Precision Thermal Rifle Scopes

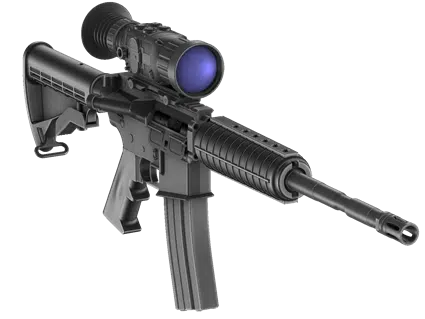

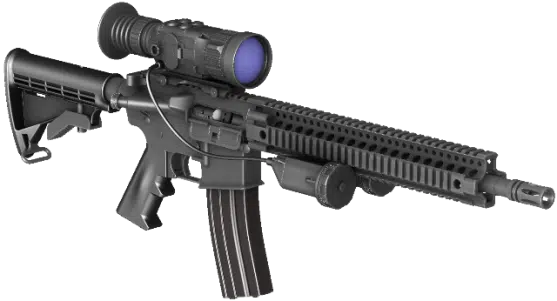

Introducing the TI-GEAR-S, a formidable thermal weapon sight meticulously crafted for professionals seeking precise aiming and engagement capabilities across medium and long distances. Engineered to excel with small and large-caliber rifles, as well as machine guns, this advanced sight stands as a pinnacle of excellence, empowering operators with unrivaled performance in single or repetitive shooting scenarios. Additionally, it serves as an indispensable tool for tactical reconnaissance and surveillance missions.
At the core of the TI-GEAR-S lies the latest generation sensor, a testament to GSCI’s unwavering commitment to technological advancement. Surrounding this cutting-edge sensor, GSCI’s proprietary hardware and software solutions coalesce to deliver unparalleled image quality, while bestowing unique tools that confer tactical advantages and ensure user safety.
Unyielding in its durability, the TI-GEAR-S is fully dust- and waterproof, surpassing the stringent standards set by modern MIL specifications. With unwavering reliability as its foundation, this thermal weapon sight thrives in the face of long-term, intensive use across any environment, be it challenging lighting conditions or harsh weather scenarios.
The TI-GEAR-S epitomizes GSCI’s dedication to providing professionals with a superlative thermal imaging weapon sight, redefining the parameters of excellence.
Most Popular Options & Accessories
- MTAR™-HUD – Multi-Task Heads-Up Display
- MVP-240™ – Multi-Voltage Battery Pack
- HMD-800-MOD – Portable Display Unit

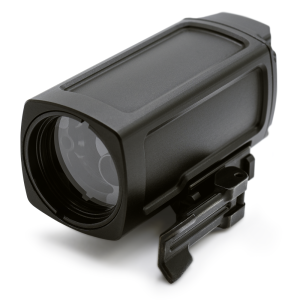

- QRF-4500™ – Advanced Laser Rangefinder
- COA – Optical Adapter to Convert into Clip-On (In-line) Sight
- DVR-INT – Internal Video Recorder
Looking to purchase the TI-GEAR-S? Find a dealer near you
TI-GEAR-S Specifications
- FPA Refresh Rate: 9Hz or 50Hz
- 12-micron and 17-micron FPA Options
- Digital Zoom: 2X, 4X
- Display: Full Size: 0.6-Inch, AMOLED, Colour, 800×600

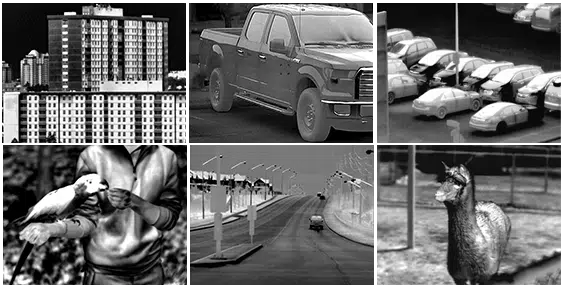

- Imaging Modes: Monochrome + 8 Colour Palettes
- Conversion to Clip-On Sight (TI-GEAR-C): Yes
- Electronic Reticle: Yes: 8+8 Patterns
- Digital Video Recorder: Optional – Built-In or External
- Compass: Yes
- Inclinometer: Yes
- Gyroscope: Yes
- Adjustable Shock Sensor: Yes
- Power Source: 2x CR123 and External (e.g. MVP-240™)
- Battery Life: Up to 7 hours on 2xCR123 or up to 15 hours with MVP-240™
- Operating Temperature: -40°C .. +50°C
- Manufacturer’s Warranty: 7 Years, Limited
General Specifications | ||
TI-GEAR-S 17µm Series  | TI-GEAR-S 12µm Series  | |
Sensor Resolution | 640×480 | 640×512 |
Pixel Pitch | 17 microns | 12 microns |
Detector Type | Uncooled, a-Si | Uncooled, VOx |
Refresh Rate | 9Hz or 50Hz | 9Hz or 50Hz |
Optical Zoom Options | 1x / 2x / 3x / 4x | 1.4x / 2.8x / 4.25x / 5.7x |
Digital Zoom | 1x, 2x, 4x, 8x | 1x, 2x, 4x |
Stow Safety Feature | Yes | Yes |
9-Axis HUD Feature | Yes | Yes |
Digital Video Recorder | Optional | No |
Universal Port | Yes | Yes |
Power Source | 2x CR123 or MVP-240 | 2x CR123 or MVP-240 |
Battery Life (2x CR123) | 7 Hours | 6 Hours |
Battery Life on MVP-240 | 25 Hours | 24 Hours |
Environmental Protection | Waterproof | Waterproof |
Operating Temperature | -40°C .. +50°C | -40°C... +50°C |
Warranty | 7 Years, Limited | 7 Years, Limited |
Available Models
TI-GEAR-S325 17µm (Situational Awareness)
Lens: 25mm | Sensor: 384x288 pixels | Field Of View: 14.9° x 11.2° | DRI (Human): 830m / 310m / 165m
TI-GEAR-S625 17µm (Situational Awareness)
Lens: 25mm | Sensor: 640x480 pixels | Field Of View: 24.5° x 18.5° | DRI (Human): 830m / 310m / 165m
TI-GEAR-SA3M 12µm (Situational Awareness)
Lens: 35mm | Sensor: 384x288 pixels | Field Of View: 8.3° x 6.2° | DRI (Human): 1650m / 615m / 330m
TI-GEAR-SA6M 12µm (Situational Awareness)
Lens: 35mm | Sensor: 640x512 pixels | Field Of View: 12.5° x 9.4° | DRI (Human): 1650m / 615m / 330m
TI-GEAR-S350F 17µm (Medium-Range)
Lens: 50mm | Sensor: 384x288 pixels | Field Of View: 7.5° x 5.6° | DRI (Human): 1660m / 625m / 330m
TI-GEAR-S650F 17µm (Medium-Range)
Lens: 50mm | Sensor: 640x480 pixels | Field Of View: 12.4° x 9.3° | DRI (Human): 1660m / 625m / 330m
TI-GEAR-MR3S 12µm (Medium-Range)
Lens: 50mm | Sensor: 384x288 pixels | Field Of View: 5.3° x 3.9° | DRI (Human): 2360m / 885m / 470m
TI-GEAR-MR6S 12µm (Medium-Range)
Lens: 50mm | Sensor: 640x512 pixels | Field Of View: 8.7° x 6.5° | DRI (Human): 2360m / 885m / 470m
TI-GEAR-S375 17µm (Long-Range)
Lens: 75mm | Sensor: 384x288 pixels | Field Of View: 5.0° x 3.7° | DRI (Human): 2500m / 935m / 500m
TI-GEAR-S675 17µm (Long-Range)
Lens: 75mm | Sensor: 640x480 pixels | Field Of View: 8.3° x 6.2° | DRI (Human): 2500m / 935m / 500m
TI-GEAR-LR3S 12µm (Long-Range)
Lens: 75mm | Sensor: 384x288 pixels | Field Of View: 3.5° x 2.6° | DRI (Human): 3540m / 1325m / 705m
TI-GEAR-LR6S 12µm (Long-Range)
Lens: 75mm | Sensor: 640x512 pixels | Field Of View: 5.8° x 4.3° | DRI (Human): 3540m / 1325m / 705m
TI-GEAR-S3100 17µm (Ultra Long-Range)
Lens: 100mm | Sensor: 384x288 pixels | Field Of View: 3.7° x 2.8° | DRI (Human): 3330m / 1250m / 665m
TI-GEAR-S6100 17µm (Ultra Long-Range)
Lens: 100mm | Sensor: 640x480 pixels | Field Of View: 6.2° x 4.7° | DRI (Human): 3330m / 1250m / 665m
TI-GEAR-ULR3S 12µm (Ultra Long-Range)
Lens: 100mm | Sensor: 384x288 pixels | Field Of View: 2.6° x 2.0° | DRI (Human): 4720m / 1770m / 945m
TI-GEAR-ULR6S 12µm (Ultra Long-Range)
Lens: 100mm | Sensor: 640x512 pixels | Field Of View: 4.4° x 3.3° | DRI (Human): 4720m / 1770m / 945m

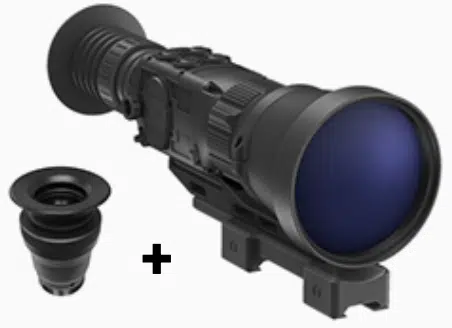

TI-GEAR-X3100 17µm (2-IN-1 KIT) Ultra Long-Range
Lens: 100mm | Sensor: 384x288 pixels | Field Of View: 3.7° x 2.8° | DRI (Human): 3330m / 1250m / 665m
TI-GEAR-X6100 17µm (2-IN-1 KIT) Ultra Long-Range
Lens: 100mm | Sensor: 640x480 pixels | Field Of View: 6.2° x 4.7° | DRI (Human): 3330m / 1250m / 665m
TI-GEAR-ULR3SX 12µm (2-IN-1 KIT) Ultra Long-Range
Lens: 100mm | Sensor: 384x288 pixels | Field Of View: 2.6° x 2.0° | DRI (Human): 4720m / 1770m / 945m
TI-GEAR-ULR6SX 12µm (2-IN-1 KIT) Ultra Long-Range
Lens: 100mm | Sensor: 640x512 pixels | Field Of View: 4.4° x 3.3° | DRI (Human): 4720m / 1770m / 945m
Looking to purchase the TI-GEAR-S? Find a dealer near you
Most Popular Options and Accessories

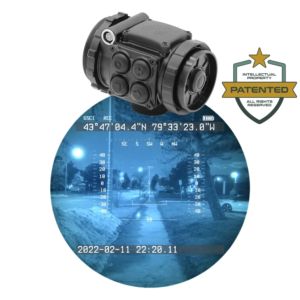

MTAR™-HUD
