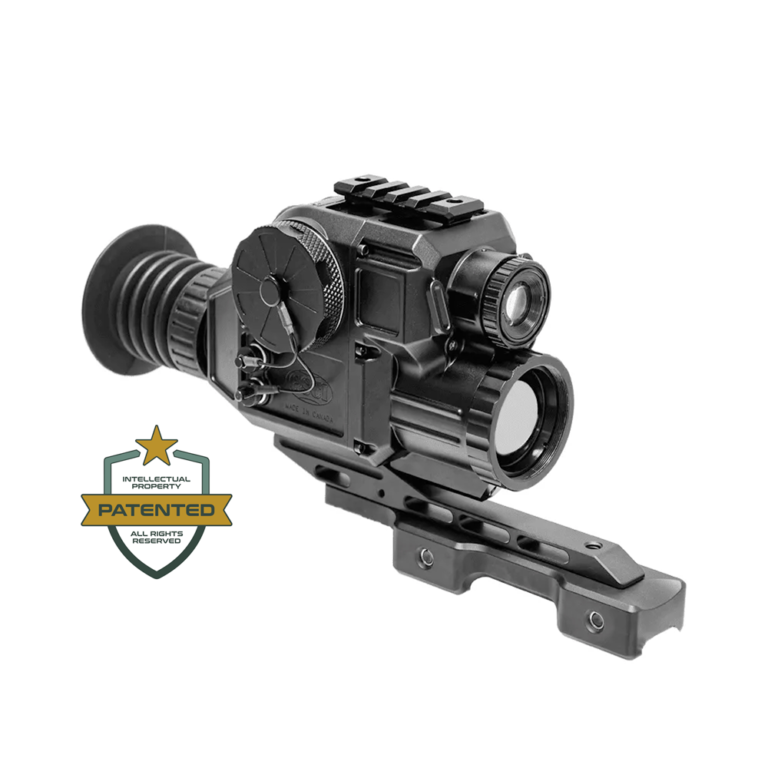

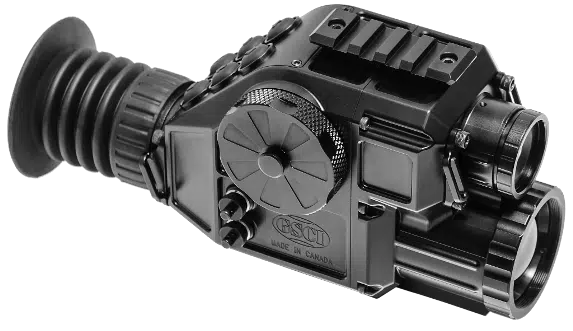

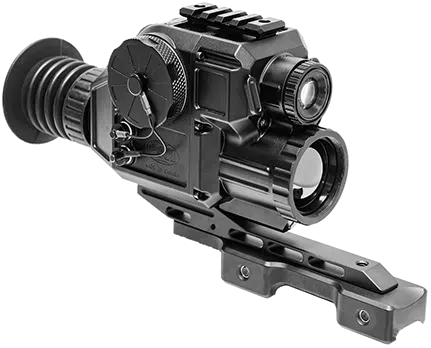

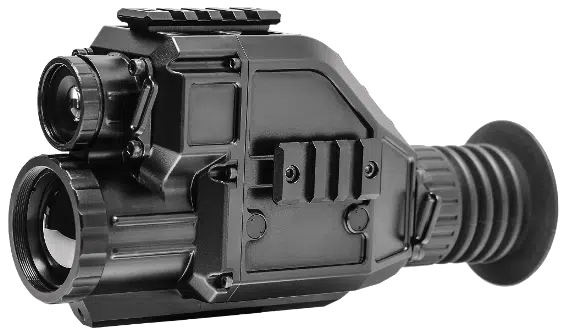

QUADRO-S | Multi-Purpose Fusion System | GSCI Advanced Photonics

The QUADRO-S is the augmented vision multi-purpose system for tactical surveillance, observation and engagement at short- and medium-range distances. It is the next big step in the evolution of advanced detection systems.

Thanks to GSCI’s patented multi-sensor technology, the QUADRO-S operates in 5 distinct modes: Thermal, Daytime, Nighttime and two Hybrid views, also known as the Fusion: Day-Fusion and Night-Fusion. On top of that, the QUADRO-S comes loaded with many unique features that offer convenience and help give the operator a tactical advantage.

Most Popular Options & Accessories

  • MTAR™-HUD – Multi-Task Heads-Up Display
  • MVP-240 – Multi-Voltage Battery Pack
  • HMD-800-MOD – Portable Display Unit
  • QRF-4500 – Advanced Laser Rangefinder
  • COA – Clip-On Eyepiece
  • DVR-INT – Internal Video Recorder (Ideal for Post-Mission Debriefings | Drag-and-Drop Video Files | 32GB microSD Card Included)

Looking to purchase the QUADRO-S? Find a dealer near you

QUADRO-S Specifications

  • FPA Refresh Rate: 9Hz or 50Hz
  • Digital Zoom: 2X, 4X, 8X
  • Display: Full Size: 0.6-Inch, AMOLED, Colour, 800×600
  • Imaging Modes: Monochrome + 8 Colour Palettes
  • Digital Video Recorder: Optional: Built-In or External
  • Power Source: 4pcs AA and External (e.g. MVP-240)
  • Battery Life: Up to 7 hours
  • Operating Temperature: -40°C .. +50°C
  • Manufacturer’s Warranty: 7 Years, Limited

QUADRO-S Features

The beauty of the QUADRO-S is that with the fusion mode you are never left in pitch darkness.

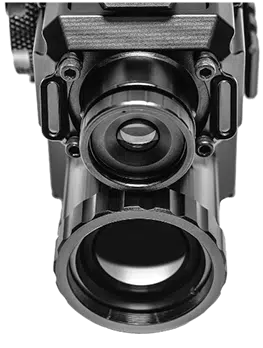

Both channels, complementing each other to produce real-time, no-lag video image and unmatched situation awareness. This is achieved by combining detailed images from the visible/near infrared and long-wave infrared ranges of spectrum. The end result is a superb detection and recognition capability.



Configurations

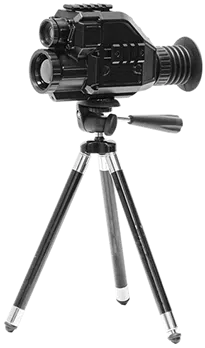

Hand-Held & Tripod-Mountable Unit: Great for surveillance and reconnaissance thanks to high situational awareness.

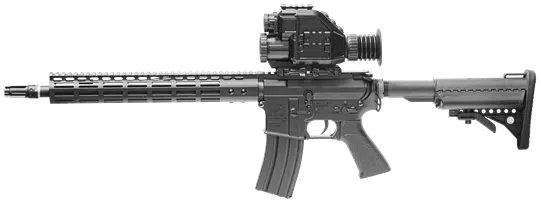

Standalone Weapon Sight: Perfect tool for short- to medium-range aiming and engagements.

Clip-On Weapon Sight: Easy to pair with most daytime scopes.
