QUADRO-B | Long-Range Fusion Binoculars | GSCI Advanced Photonics

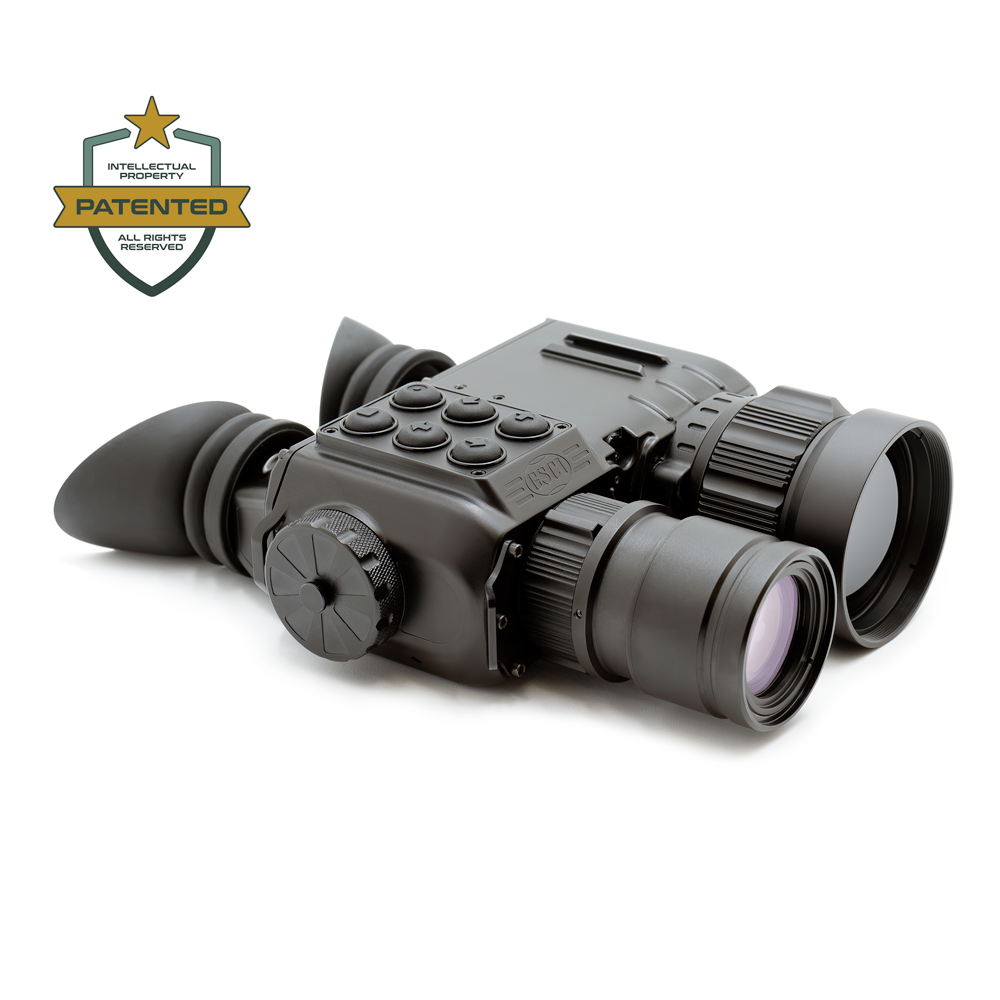

The QUADRO-B the series of dual-eye tactical binocular systems for surveillance and reconnaissance at long-range distances based on the technology of the QUADRO-S unit. The QUADRO-B series can be hand-held or tripod-mounted.

Thanks to GSCI’s patented multi-sensor technology, each QUADRO-B operates in 5 distinct modes: Thermal, Daytime, Nighttime and two Hybrid views, also known as the Fusion: Day-Fusion and Night-Fusion. On top of that, the QUADRO-G comes loaded with many unique features that offer convenience and help give the operator a tactical advantage.

QUADRO-B is available in three configurations with 50, 75, and 100mm objective lenses and matching lenses for the visible channel. Each model provides optimal ratio of detection distance and situational awareness.

Most Popular Options & Accessories

  • MTAR™-HUD – Multi-Task Heads-Up Display
  • MVP-240 – Multi-Voltage Battery Pack
  • HMD-800-MOD – Portable Display Unit
  • TRC120 – Remote Control
  • QRF-4500 – Advanced Laser Rangefinder
  • DVR-INT – Internal Video Recorder (Ideal for Post-Mission Debriefings | Drag-and-Drop Video Files | 32GB microSD Card Included)



Looking to purchase the QUADRO-B? Find a dealer near you

QUADRO-B Specifications

  • FPA Refresh Rate: 9Hz or 50Hz
  • Digital Zoom: 2X, 4X, 8X
  • Display: Full Size: 0.5-Inch, AMOLED, Colour, 800×600
  • Imaging Modes: Monochrome + 8 Colour Palettes
  • Digital Video Recorder: Optional: Built-In or External
  • Power Source: 4pcs AA and External (e.g. MVP-240)
  • Battery Life: Up to 7 hours
  • Operating Temperature: -40°C .. +50°C
  • Manufacturer’s Warranty: 7 Years, Limited

QUADRO-B Features

The beauty of the QUADRO-B is that with the fusion mode you are never left in pitch darkness.

Both channels, complementing each other to produce real-time, no-lag video image and unmatched situation awareness. This is achieved by combining detailed images from the visible/near infrared and long-wave infrared ranges of spectrum. The end result is a superb detection and recognition capability.

Overview

Highlights

Performance

Available Models

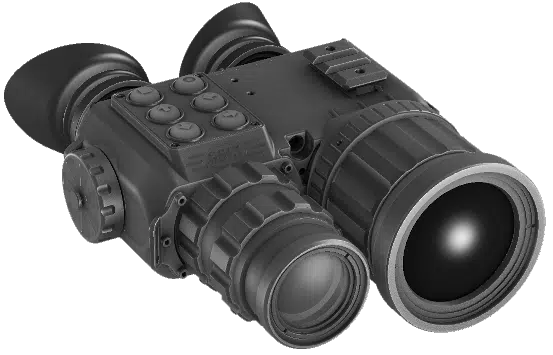

QUADRO-B50

50mm Objective Lens 640x480 FPA

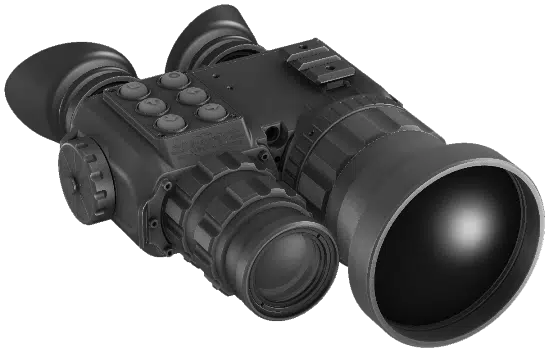

QUADRO-B75

75mm Objective Lens 640x480 FPA

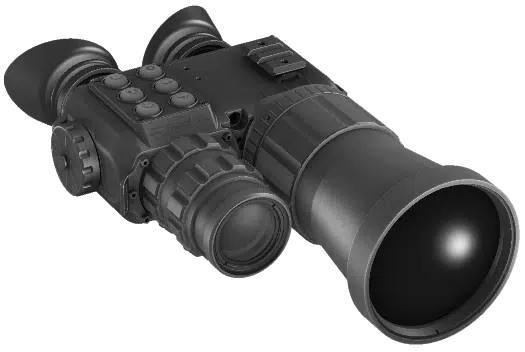

QUADRO-B100

100mm Objective Lens 640x480 FPA

Looking to purchase the QUADRO-B? Find a dealer near you

Most Popular Options and Accessories

MTAR-HUD

Multi-Task Augmented Reality™ Night Vision Monocular Attachment Heads-Up Display

MVP-240

MVP-240 | Universal Multi-Voltage Battery Pack | GSCI Advanced Photonics

DVR-INT

Internal Video Recorder

HMD-800-MOD

Ultra Portable Head-Mounted Display Unit for live-streaming no-lag video signal from virtually any optical-electronic system

TRC120

Universal Remote Control Unit
