Advanced Night Vision Monoculars: LUX-14 and LUX-14L

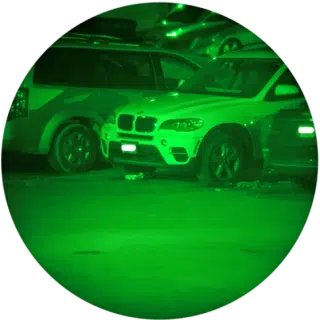

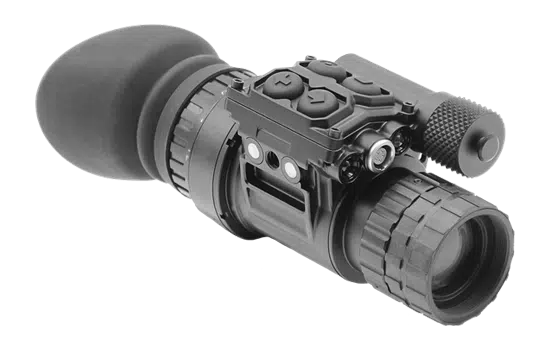

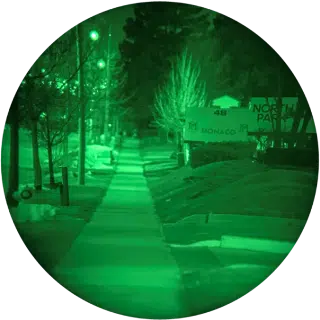

The LUX-14 has been developed to provide the user with cutting-edge night vision technology in a lightweight and compact MIL-SPEC package. With digital push button controls that can be easily operated, even while wearing tactical gloves, it is the smallest and lightest in its class, weighing just over 250 grams with 18mm gold standard tubes. But even in the small and light configuration the nitrogen purged fully aluminium housing, the LUX-14 is robust and hence a reliable tool in any weather conditions. Its nitrogen purged aluminum housing makes it robust and reliable in all weather conditions. The image quality has also been optimized to give operators a clear, bright image in low light settings. You also have access to an external power port that allows you to connect it to a GSCI MVP-240 battery pack or any other source of portable power source.

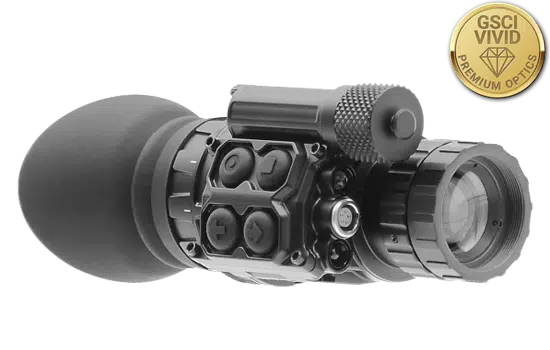

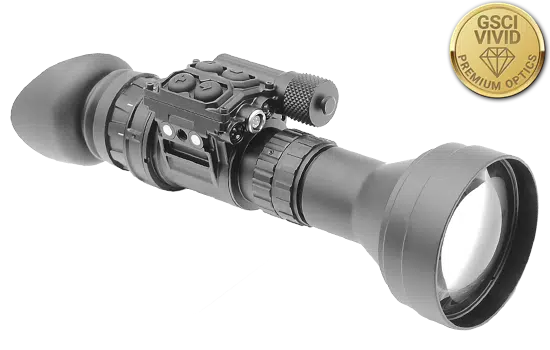

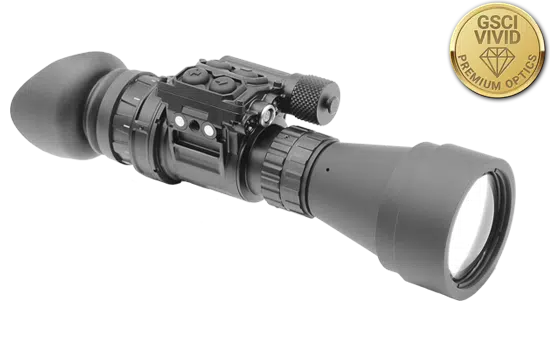

The LUX-14L is an upgraded version of the traditional night vision monocular system. This innovative instrument is widely used for a variety of tasks and operations, being the result of our most recent technological breakthroughs, feedback from expert users, and GSCI’s engineering achievements over 30 years. It features proprietary GSCI-VIVID high-performance front and rear optics – the lightest optics available on the market today and offers a crystal-clear image. This monocular system is one of the lightest you can find!

As one of only a few major manufacturers in the world, GSCI Advanced Photonics stocks a large quantity of Image Intensifier Tubes (IITs) from practically all IIT suppliers – ensuring customers get timely delivery on any quantity of LUX-14 systems equipped with any IITs: Gen. 2+, Gen. 3, ECHO*, ECHO* Elite, 4G*, 4G* Elite and 4G* Elite Plus in green or white phosphor configurations with FOMs up to 2400+. We offer this night vision device to our authorized distributors in OEM tubeless kits.

Most Popular Options & Accessories

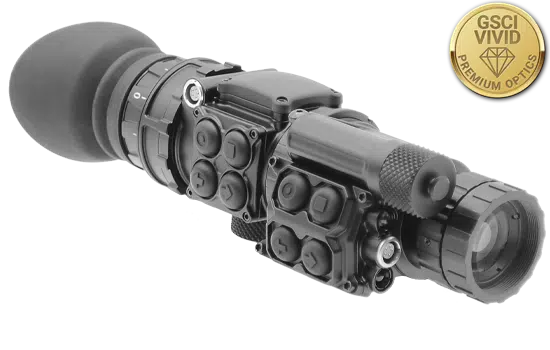

  • MTAR™-HUD – Multi-Task Heads-Up Display
  • MVP-240 – Multi-Voltage Battery Pack

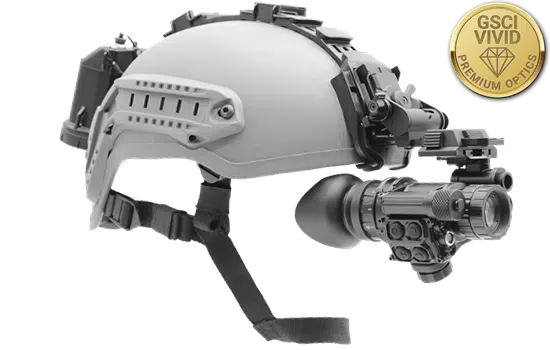

  • HMH-1 – Helmet Mounting Harness

Looking to purchase the LUX-14? Find a dealer near you

Technical Data

LUX-14

LUX-14L

Lens System

27mm. f/1.2

27mm. f/1.2

Diopter Adjustment Range

-6 ... +2

-6 .. +2

Proprietary GSCI-VIDID Premium Optics

No

Yes

Digital Push Button Controls

Yes

Yes

Optical Magnification

1X

1X

Field Of View (FOV)*

40°

40°

IR Illuminator

Yes: Built-in

Yes: Built-In

Bright Light Sensor

Yes: Built-In

Yes: Built-In

IR LED Indicator

Yes

Yes

Bright Light LED Indicator

Yes

Yes

Low Battery LED Indicator

Yes

Yes

Stow Safety Feature

Yes

Yes

Flip-Up-Off Feature

Yes

Yes

External Power Port

Optional

Optional

Power Source

1x AA or MVP-240

1x AA or MVP-240

Battery Life (AA)

40 Hours

40 Hours

Battery Life on MVP-240

240 Hours

240 Hours

Environmental Protection

Waterproof

Waterproof

Operating Temperature

-40°C .. +50°C

-40°C .. +50°C

Dimensions

108 x 58 x 51 mm

104 x 58 x 51 mm

Weight

202 grams**

162 grams**

Warranty

7 Years, Limited

7 Years, Limited

* Field Of View (FOV) values are valid if the system is equipped with an 18mm Image Intensifier Tube

** Weight of the unit excludes an IIT due to its weight variations. Typical weight of an IIT is between 70 and 85 grams as per IIT manufacturers' specifications.

Specifications are presented for optical-electronic-mechanic assemblies only and do not include technical characteristics of image intensifier tubes.
